W3115

Short Description:

With the rapid development of modern drone technology, outer rotor drone motors have become the industry leader with their excellent performance and innovative design. This motor not only has precise control capabilities, but also provides strong power output, ensuring that drones can maintain stable and efficient performance under various flight conditions. Whether it is high-altitude photography, agricultural monitoring, or performing complex search and rescue missions, outer rotor motors can easily cope with and meet the diverse needs of users.


Product Detail

Product Tags

Product Introduction

The design concept of the outer rotor motor focuses on the combination of light weight and high efficiency. Thanks to its unique structure, the motor provides large initial starting force and acceleration while maintaining low energy consumption. This means that users can enjoy the fun of flying for a longer time without having to charge or replace batteries frequently. In addition, the wear resistance and long service life of the motor also save users maintenance costs, reduce downtime caused by equipment failure, and greatly improve work efficiency.

In terms of noise control, the outer rotor drone motor also performs well. Its low noise characteristics ensure that the drone will not cause too much interference to the surrounding environment when performing tasks, which is especially suitable for operation in cities or crowded areas. Overall, this outer rotor drone motor has become an ideal choice for drone enthusiasts and professional users due to its multiple advantages such as precise control, high power output, lightweight design, low energy consumption, wear resistance, long life and low noise. Whether it is personal entertainment or commercial application, the outer rotor motor will bring unprecedented improvement to your flight experience.

General Specification

●Rated Voltage: 25.5VDC

●Motor Steering :CCW steering (shaft extension)

●Motor Withstand Voltage Test: 600VAC 3mA/1S

●Vibration: ≤7m/s

●Noise: ≤75dB/1m

● Virtual Position: 0.2-0.01mm

●No-load Performance: 21600RPM/3.5A

●Load Performance: 15500RPM/70A/0.95N.m

● Insulation Class: F



Application

Drones, flying machines, etc

1
2
3

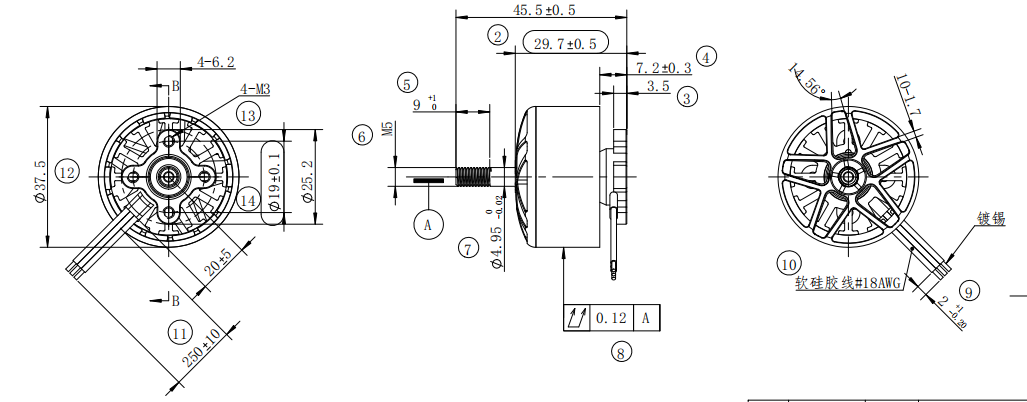

Dimension

4

Parameters

Items



Unit



Model

W3115

Rated Voltage

V

25.5(DC)

Rated Speed

RPM

15500

Rated current

A

70

No-load Speed

RPM

21600

Vibration

M/s

≤7

Rated Torque

N.m

0.95

Noise

dB/m

≤75

Insulation Class

/

F
